IRLU7843-701PBF

Enlarger

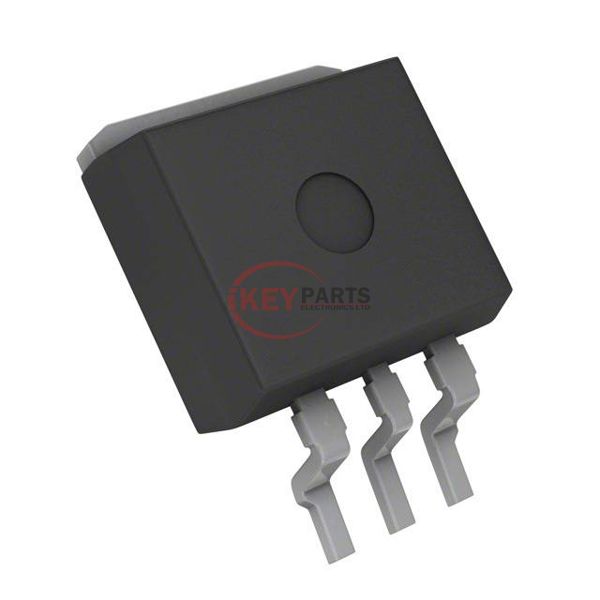

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRLU7843-701PBF

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRLU7843-701PBF
Description
MOSFET N-CH 30V 161A IPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRLU7843-701PBF PDF
IRLU7843-701PBF Tech Specifications
SeriesHEXFET®
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C161A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.3mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs50 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4380 pF @ 15 V
FET Feature-
Power Dissipation (Max)140W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageI-PAK (LF701)
Package / CaseTO-252-4, DPak (3 Leads + Tab)
Request Quote Now
Request Quote Now

We can supply IRLU7843-701PBF, use the request quote form to request IRLU7843-701PBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRLU7843-701PBF. The price and lead time for IRLU7843-701PBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRLU7843-701PBF. We look forward to working with you to establish long-term relations of cooperation.
