TPH3206LDB

Enlarger

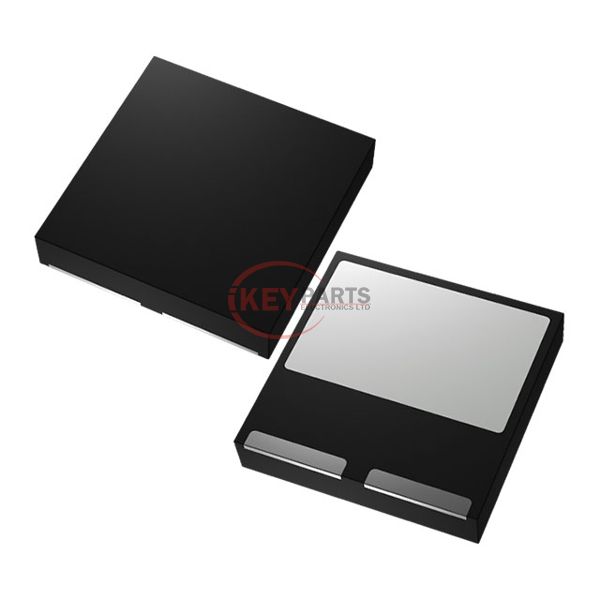

Lmages are for reference only See Product Specitications

Transphorm TPH3206LDB

Manufacturer :
Transphorm
Mfr. Part # :
TPH3206LDB
Description
GANFET N-CH 650V 16A PQFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPH3206LDB PDF
TPH3206LDB Tech Specifications
Series-
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs180mOhm @ 10A, 8V
Vgs(th) (Max) @ Id2.6V @ 500µA
Gate Charge (Qg) (Max) @ Vgs6.2 nC @ 4.5 V
Vgs (Max)±18V
Input Capacitance (Ciss) (Max) @ Vds720 pF @ 480 V
FET Feature-
Power Dissipation (Max)81W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePQFN (8x8)
Package / Case4-PowerDFN
Request Quote Now
Request Quote Now

We can supply TPH3206LDB, use the request quote form to request TPH3206LDB pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPH3206LDB. The price and lead time for TPH3206LDB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPH3206LDB. We look forward to working with you to establish long-term relations of cooperation.
