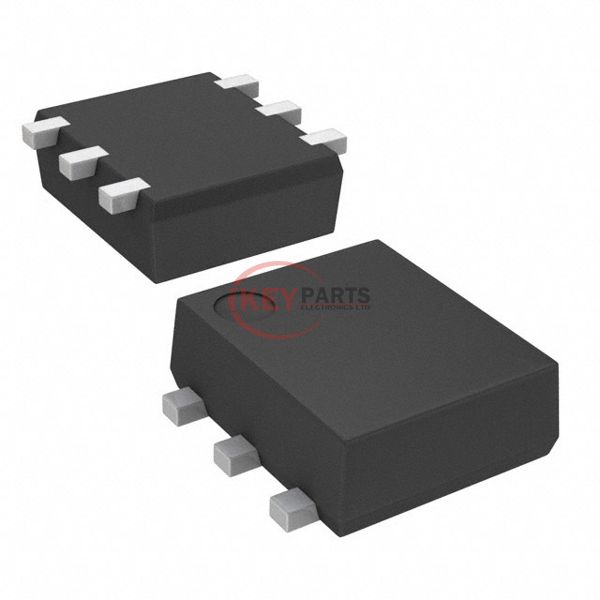

MCH6536-TL-E

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor MCH6536-TL-E

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
MCH6536-TL-E
Description
TRANS NPN/PNP 15V/12V 6MCPH
Catalog
Transistors - Bipolar (BJT) - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MCH6536-TL-E PDF
MCH6536-TL-E Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Transistor TypeNPN, PNP
Current - Collector (Ic) (Max)700mA, 500mA
Voltage - Collector Emitter Breakdown (Max)15V, 12V
Vce Saturation (Max) @ Ib, Ic300mV @ 10mA, 200mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce300 @ 10mA, 2V
Power - Max550mW
Frequency - Transition330MHz, 490MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-SMD, Flat Leads
Supplier Device Package6-MCPH
Request Quote Now
Request Quote Now

We can supply MCH6536-TL-E, use the request quote form to request MCH6536-TL-E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MCH6536-TL-E. The price and lead time for MCH6536-TL-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MCH6536-TL-E. We look forward to working with you to establish long-term relations of cooperation.
