2N3807

Enlarger

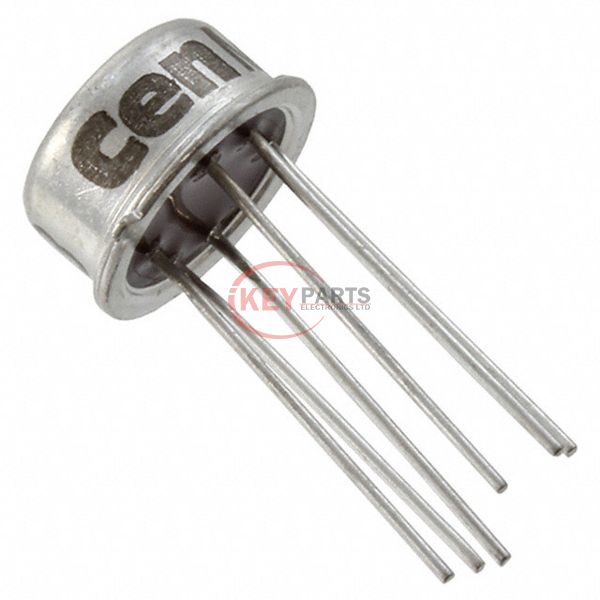

Lmages are for reference only See Product Specitications

Central Semiconductor 2N3807

Manufacturer :
Central Semiconductor
Mfr. Part # :
2N3807
Description
TRANS 2PNP 50MA 60V TO78-6
Catalog
Transistors - Bipolar (BJT) - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2N3807 PDF
2N3807 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
Transistor Type2 PNP (Dual)
Current - Collector (Ic) (Max)50mA
Voltage - Collector Emitter Breakdown (Max)60V
Vce Saturation (Max) @ Ib, Ic-
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce300 @ 1mA, 5V
Power - Max600mW
Frequency - Transition100MHz
Operating Temperature-
Mounting TypeThrough Hole
Package / CaseTO-78-6 Metal Can
Supplier Device PackageTO-78-6
Request Quote Now
Request Quote Now

We can supply 2N3807, use the request quote form to request 2N3807 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N3807. The price and lead time for 2N3807 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N3807. We look forward to working with you to establish long-term relations of cooperation.
