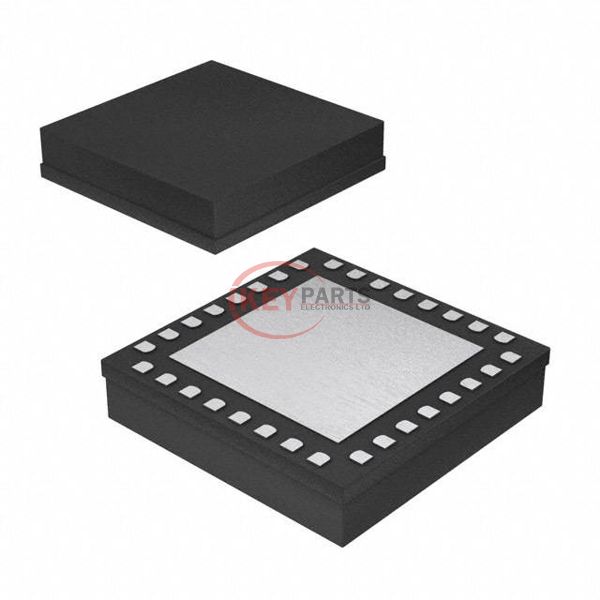

HMC513LP5E

Enlarger

Lmages are for reference only See Product Specitications

Linear Technology (Analog Devices, Inc.) HMC513LP5E

Manufacturer :
Linear Technology (Analog Devices, Inc.)
Mfr. Part # :
HMC513LP5E
Description
VCO 5.4725/10.945GHZ 2-13V 5X5MM
Catalog
VCOs (Voltage Controlled Oscillators)
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
HMC513LP5E PDF
HMC513LP5E Tech Specifications
Series-
PackageStrip
Part StatusActive
Frequency Range5.215 ~ 5.73GHz, 10.43 ~ 11.46GHz
Frequency - Center5.4725GHz, 10.945GHz
Voltage - Supply3V
Tuning Voltage (VDC)2 V ~ 13.0 V
2nd Harmonic, Typ (dBc)15
Icc Max290mA
Pushing (MHz/V)25
Power (dBm)-7±3, 8±3, 7.5±2.5
Phase Noise Typ (dBc/Hz)-110
Operating Temperature-40°C ~ 85°C
Package / Case32-VFQFN Exposed Pad, CSP
Size / Dimension0.197" L x 0.197" W (5.00mm x 5.00mm)
Height0.039" (1.00mm)
Request Quote Now
Request Quote Now

We can supply HMC513LP5E, use the request quote form to request HMC513LP5E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HMC513LP5E. The price and lead time for HMC513LP5E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HMC513LP5E. We look forward to working with you to establish long-term relations of cooperation.
