HMC509LP5

Enlarger

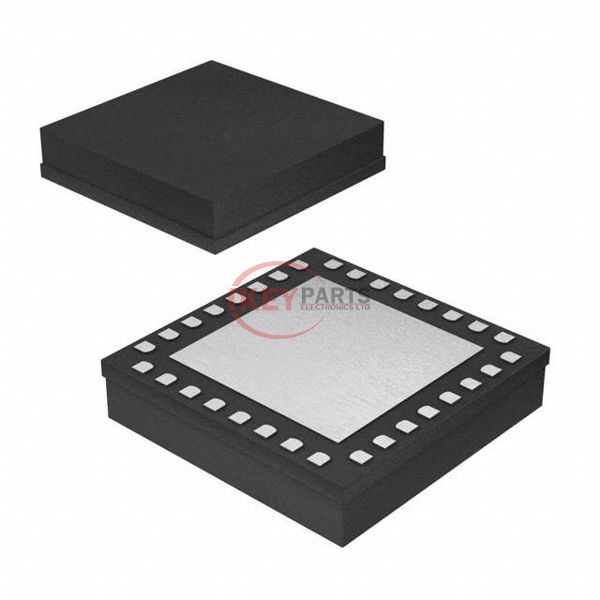

Lmages are for reference only See Product Specitications

Rochester Electronics HMC509LP5

Manufacturer :
Rochester Electronics
Mfr. Part # :
HMC509LP5
Description
VOLTAGE CONTROLLED OSCILLATOR, 7
Catalog
VCOs (Voltage Controlled Oscillators)
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
HMC509LP5 PDF
HMC509LP5 Tech Specifications
Series-
PackageBulk
Part StatusActive
Frequency Range3.9 ~ 4.4GHz, 7.8 ~ 8.8GHz
Frequency - Center4.15GHz, 8.3GHz
Voltage - Supply5V
Tuning Voltage (VDC)2 V ~ 13.0 V
2nd Harmonic, Typ (dBc)10
Icc Max270mA
Pushing (MHz/V)10
Power (dBm)7.5±2.5, 12.5±2.5
Phase Noise Typ (dBc/Hz)-115
Operating Temperature-40°C ~ 85°C
Package / Case32-VFQFN Exposed Pad, CSP
Size / Dimension0.197" L x 0.197" W (5.00mm x 5.00mm)
Height0.039" (1.00mm)
Request Quote Now
Request Quote Now

We can supply HMC509LP5, use the request quote form to request HMC509LP5 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HMC509LP5. The price and lead time for HMC509LP5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HMC509LP5. We look forward to working with you to establish long-term relations of cooperation.
