PD86-3-1260-TMCL

Enlarger

Lmages are for reference only See Product Specitications

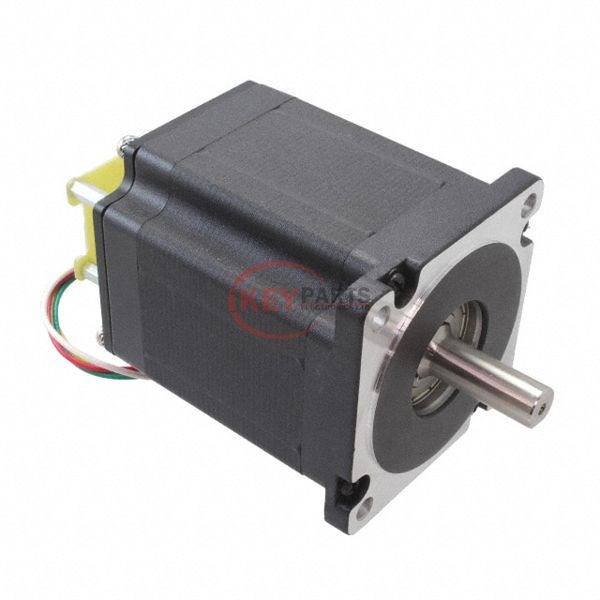

TRINAMIC Motion Control GmbH PD86-3-1260-TMCL

Manufacturer :
TRINAMIC Motion Control GmbH
Mfr. Part # :
PD86-3-1260-TMCL
Description
PANDRIVE NEMA34, 48V, 7.0NM
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PD86-3-1260-TMCL PDF
PD86-3-1260-TMCL Tech Specifications
SeriesPANdrive™
PackageBulk
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated48VDC
Current Rating (Amps)5.5 A
Steps per Revolution200
Step Angle1.8°
Accuracy-
Torque - Holding (oz-in / mNm)991.28 / 7000
Size / DimensionSquare - 3.382" x 3.382" (85.90mm x 85.90mm)
NEMA Frame Size34
Diameter - Shaft0.500" (12.70mm)
Length - Shaft and Bearing1.310" (33.27mm)
Mounting Hole Spacing2.740" (69.60mm)
Termination StyleWire Leads with Connector
Operating Temperature-
Coil Resistance0.45 Ohms
FeaturesIntegrated Controller, Flatted Shaft
Request Quote Now
Request Quote Now

We can supply PD86-3-1260-TMCL, use the request quote form to request PD86-3-1260-TMCL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PD86-3-1260-TMCL. The price and lead time for PD86-3-1260-TMCL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PD86-3-1260-TMCL. We look forward to working with you to establish long-term relations of cooperation.
