QSH6018-86-28-310

Enlarger

Lmages are for reference only See Product Specitications

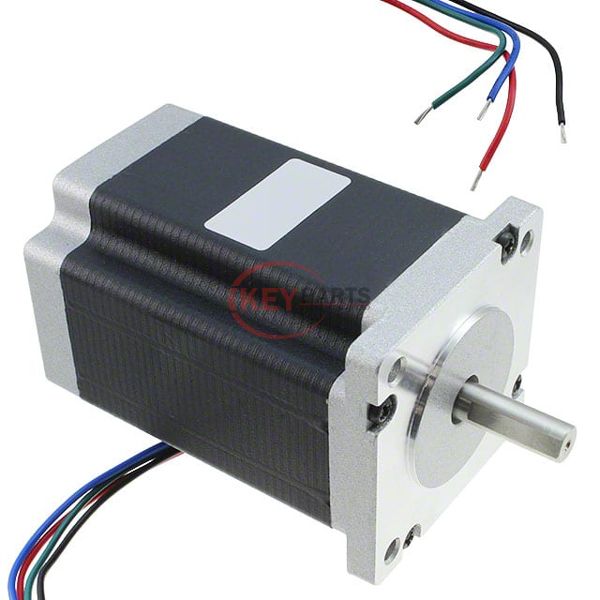

TRINAMIC Motion Control GmbH QSH6018-86-28-310

Manufacturer :
TRINAMIC Motion Control GmbH
Mfr. Part # :
QSH6018-86-28-310
Description
STEP MOTOR HYBRID BIPOLAR 4.17V
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
QSH6018-86-28-310 PDF
QSH6018-86-28-310 Tech Specifications
SeriesQMot QSH6018
PackageBulk
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated4.17VDC
Current Rating (Amps)2.8 A
Steps per Revolution200
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)438.99 / 3100
Size / DimensionSquare - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size24
Diameter - Shaft0.315" (8.00mm)
Length - Shaft and Bearing0.945" (24.00mm)
Mounting Hole Spacing1.856" (47.14mm)
Termination StyleWire Leads
Operating Temperature-20°C ~ 50°C
Coil Resistance1.5 Ohms
FeaturesFlatted Shaft
Request Quote Now
Request Quote Now

We can supply QSH6018-86-28-310, use the request quote form to request QSH6018-86-28-310 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number QSH6018-86-28-310. The price and lead time for QSH6018-86-28-310 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# QSH6018-86-28-310. We look forward to working with you to establish long-term relations of cooperation.
