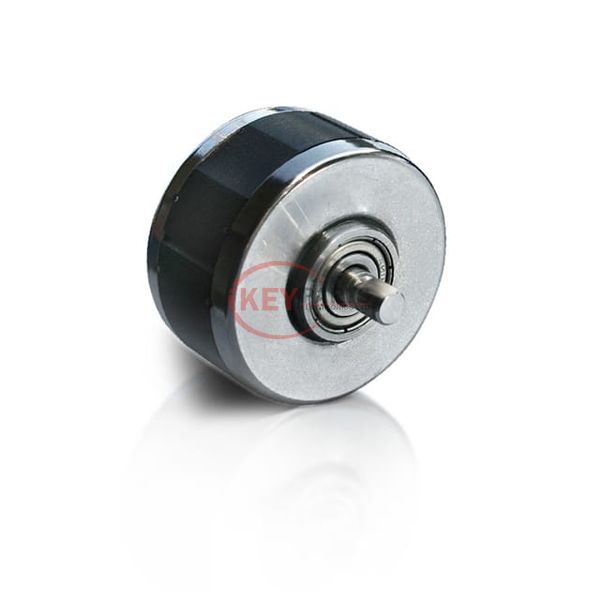

WO-3809Y-51

Enlarger

Lmages are for reference only See Product Specitications

Lin Engineering WO-3809Y-51

Manufacturer :
Lin Engineering
Mfr. Part # :
WO-3809Y-51
Description
STEPPER MOTOR
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
WO-3809Y-51 PDF
WO-3809Y-51 Tech Specifications
Series-
PackageTray
Part StatusActive
Type-
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)600 mA
Steps per Revolution400
Step Angle0.9°
Accuracy-
Torque - Holding (oz-in / mNm)6 / 42.37
Size / DimensionRound - 1.429" Dia (36.30mm)
NEMA Frame Size14
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing0.591" (15.00mm)
Mounting Hole Spacing-
Termination StyleWire Leads
Operating Temperature-20°C ~ 50°C
Coil Resistance4 Ohms
FeaturesRound Shaft
Request Quote Now
Request Quote Now

We can supply WO-3809Y-51, use the request quote form to request WO-3809Y-51 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number WO-3809Y-51. The price and lead time for WO-3809Y-51 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# WO-3809Y-51. We look forward to working with you to establish long-term relations of cooperation.
