PD42-2-1070

Enlarger

Lmages are for reference only See Product Specitications

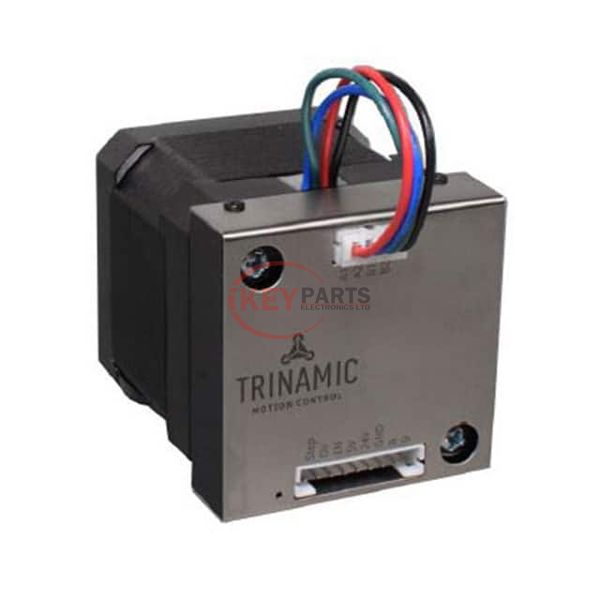

TRINAMIC Motion Control GmbH PD42-2-1070

Manufacturer :
TRINAMIC Motion Control GmbH
Mfr. Part # :
PD42-2-1070
Description
STEPPER MOTOR HYBRID BIPOLAR 24V
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PD42-2-1070 PDF
PD42-2-1070 Tech Specifications
SeriesPANdrive™
PackageBulk
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)1 A
Steps per Revolution200
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)51 / 360
Size / DimensionSquare - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size17
Diameter - Shaft-
Length - Shaft and Bearing-
Mounting Hole Spacing1.220" (30.99mm)
Termination StyleConnector
Operating Temperature-20°C ~ 50°C
Coil Resistance1.2 Ohms
FeaturesIntegrated Controller, Round Shaft
Request Quote Now
Request Quote Now

We can supply PD42-2-1070, use the request quote form to request PD42-2-1070 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PD42-2-1070. The price and lead time for PD42-2-1070 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PD42-2-1070. We look forward to working with you to establish long-term relations of cooperation.
