NSBC143TPDXV6T1

Enlarger

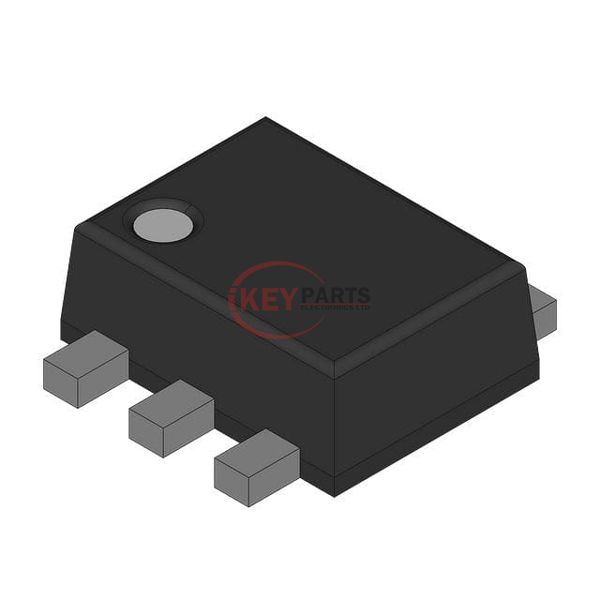

Lmages are for reference only See Product Specitications

Rochester Electronics NSBC143TPDXV6T1

Manufacturer :
Rochester Electronics
Mfr. Part # :
NSBC143TPDXV6T1
Description
SMALL SIGNAL BIPOLAR TRANSISTOR
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NSBC143TPDXV6T1 PDF
In Stock
84000
NSBC143TPDXV6T1 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)4.7kOhms
Resistor - Emitter Base (R2)-
DC Current Gain (hFE) (Min) @ Ic, Vce160 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max357mW
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device PackageSOT-563
Request Quote Now
Request Quote Now

We can supply NSBC143TPDXV6T1, use the request quote form to request NSBC143TPDXV6T1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NSBC143TPDXV6T1. The price and lead time for NSBC143TPDXV6T1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NSBC143TPDXV6T1. We look forward to working with you to establish long-term relations of cooperation.
