NSVTB60BDW1T1G

Enlarger

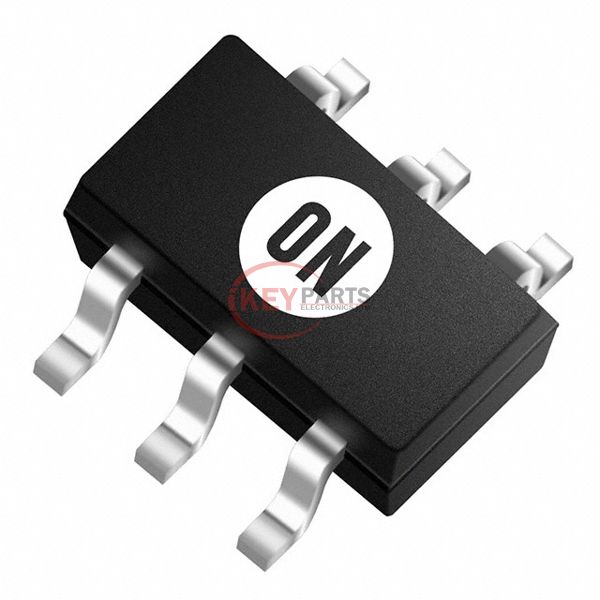

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NSVTB60BDW1T1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NSVTB60BDW1T1G
Description
TRANS NPN/PNP COMBO SC88-6
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NSVTB60BDW1T1G PDF
In Stock
966
NSVTB60BDW1T1G Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)
Part StatusActive
Transistor Type1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max)150mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)22kOhms
Resistor - Emitter Base (R2)47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 5mA, 10V / 120 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 5mA, 10mA / 500mV @ 5mA, 50mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max250mW
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSC-88/SC70-6/SOT-363
Request Quote Now
Request Quote Now

We can supply NSVTB60BDW1T1G, use the request quote form to request NSVTB60BDW1T1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NSVTB60BDW1T1G. The price and lead time for NSVTB60BDW1T1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NSVTB60BDW1T1G. We look forward to working with you to establish long-term relations of cooperation.
