NSBC115TDP6T5G

Enlarger

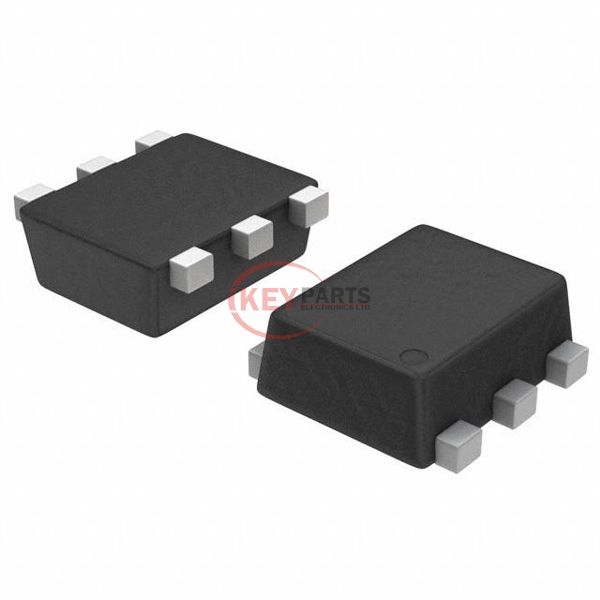

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NSBC115TDP6T5G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NSBC115TDP6T5G
Description
TRANS PREBIAS 2NPN 50V SOT963
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NSBC115TDP6T5G PDF
NSBC115TDP6T5G Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
Transistor Type2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)100kOhms
Resistor - Emitter Base (R2)-
DC Current Gain (hFE) (Min) @ Ic, Vce160 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 5mA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max339mW
Mounting TypeSurface Mount
Package / CaseSOT-963
Supplier Device PackageSOT-963
Request Quote Now
Request Quote Now

We can supply NSBC115TDP6T5G, use the request quote form to request NSBC115TDP6T5G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NSBC115TDP6T5G. The price and lead time for NSBC115TDP6T5G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NSBC115TDP6T5G. We look forward to working with you to establish long-term relations of cooperation.
