NSBC114EDXV6T5

Enlarger

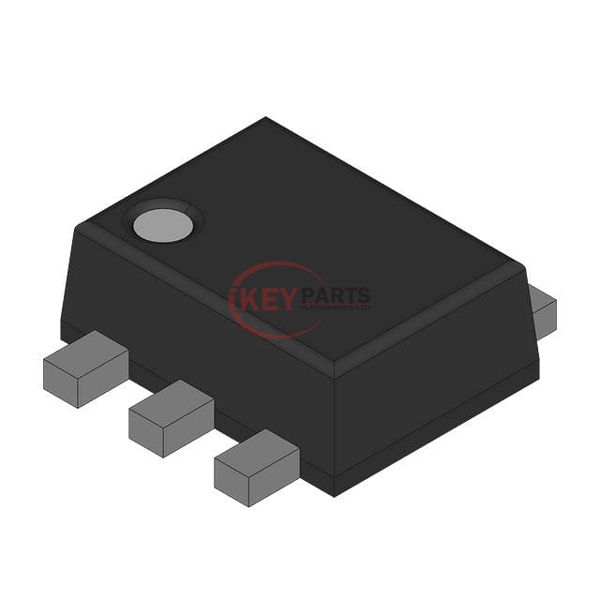

Lmages are for reference only See Product Specitications

Rochester Electronics NSBC114EDXV6T5

Manufacturer :
Rochester Electronics
Mfr. Part # :
NSBC114EDXV6T5
Description
SMALL SIGNAL BIPOLAR TRANSISTOR
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NSBC114EDXV6T5 PDF
In Stock
896000
NSBC114EDXV6T5 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
Transistor Type2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)10kOhms
Resistor - Emitter Base (R2)10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce35 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max500mW
Mounting TypeSurface Mount
Package / CaseSOT-553
Supplier Device PackageSOT-553
Request Quote Now
Request Quote Now

We can supply NSBC114EDXV6T5, use the request quote form to request NSBC114EDXV6T5 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NSBC114EDXV6T5. The price and lead time for NSBC114EDXV6T5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NSBC114EDXV6T5. We look forward to working with you to establish long-term relations of cooperation.
