Series | - | |
Package | Tube | |
Part Status | Active | |
IGBT Type | Trench Field Stop | |
Voltage - Collector Emitter Breakdown (Max) | 600 V | |
Current - Collector (Ic) (Max) | 60 A | |
Current - Collector Pulsed (Icm) | 120 A | |
Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 30A | |
Power - Max | 58 W | |
Switching Energy | 383µJ (on), 233µJ (off) | |
Input Type | Standard | |
Gate Charge | 163 nC | |
Td (on/off) @ 25°C | 45ns/189ns | |
Test Condition | 400V, 30A, 10Ohm, 15V | |
Reverse Recovery Time (trr) | - | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |

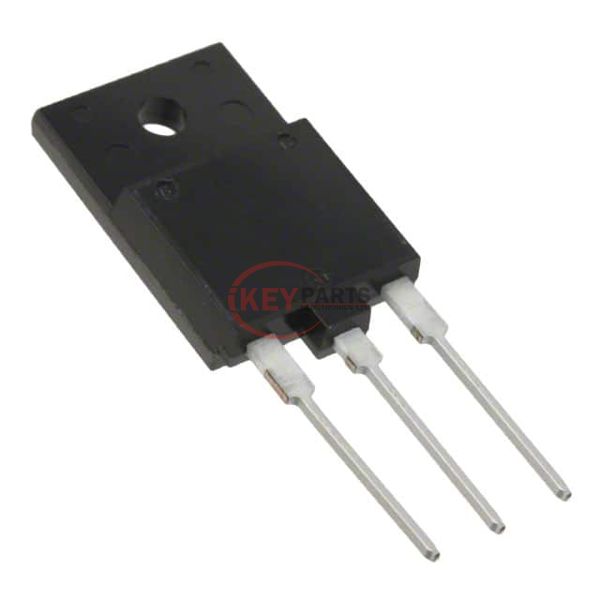

Package / Case | TO-3P-3 Full Pack | |
Supplier Device Package | TO-3PF |
We can supply STGFW30V60F, use the request quote form to request STGFW30V60F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STGFW30V60F. The price and lead time for STGFW30V60F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STGFW30V60F. We look forward to working with you to establish long-term relations of cooperation.
![]() |
