RGS60TS65HRC11

Enlarger

Lmages are for reference only See Product Specitications

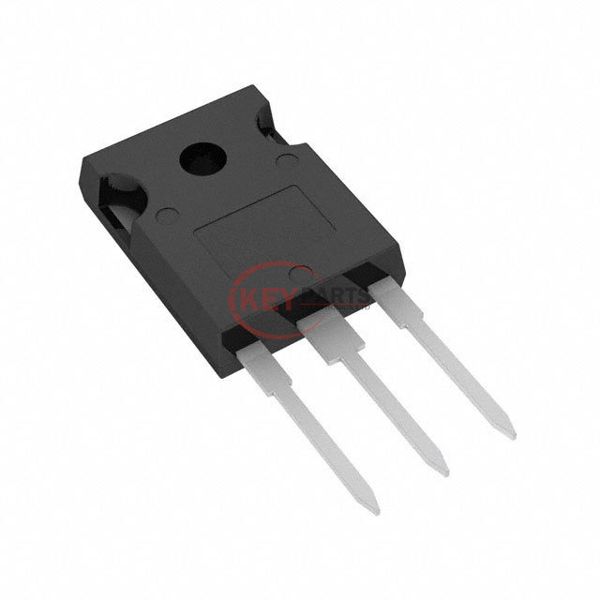

ROHM Semiconductor RGS60TS65HRC11

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RGS60TS65HRC11
Description
650V 30A FIELD STOP TRENCH IGBT.
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RGS60TS65HRC11 PDF
RGS60TS65HRC11 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)56 A
Current - Collector Pulsed (Icm)90 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 30A
Power - Max223 W
Switching Energy660µJ (on), 810µJ (off)
Input TypeStandard
Gate Charge36 nC
Td (on/off) @ 25°C28ns/104ns
Test Condition400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247N
Request Quote Now
Request Quote Now

We can supply RGS60TS65HRC11, use the request quote form to request RGS60TS65HRC11 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RGS60TS65HRC11. The price and lead time for RGS60TS65HRC11 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RGS60TS65HRC11. We look forward to working with you to establish long-term relations of cooperation.
