IXYH24N170C

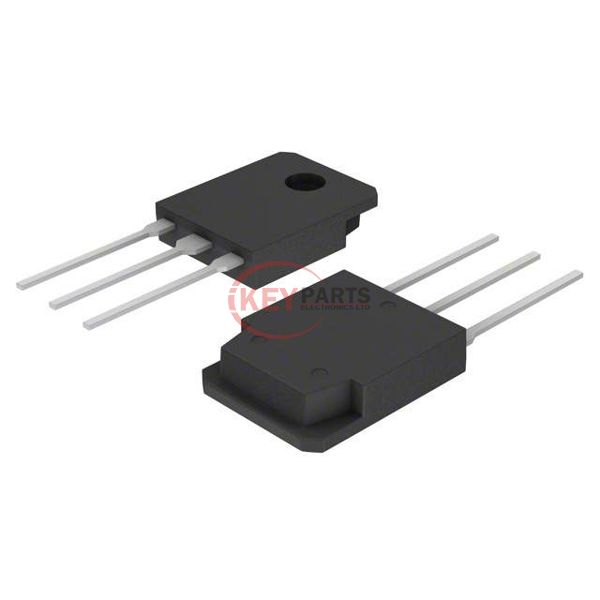

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXYH24N170C

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXYH24N170C
Description
IGBT 1.7KV 58A TO247-3
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXYH24N170C PDF
IXYH24N170C Tech Specifications
SeriesXPT™
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)58 A
Current - Collector Pulsed (Icm)145 A
Vce(on) (Max) @ Vge, Ic3.8V @ 15V, 20A
Power - Max500 W
Switching Energy4.9mJ (on), 1.95mJ (off)
Input TypeStandard
Gate Charge96 nC
Td (on/off) @ 25°C12ns/160ns
Test Condition960V, 30A, 15Ohm, 15V
Reverse Recovery Time (trr)30 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
Request Quote Now
Request Quote Now

We can supply IXYH24N170C, use the request quote form to request IXYH24N170C pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXYH24N170C. The price and lead time for IXYH24N170C depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXYH24N170C. We look forward to working with you to establish long-term relations of cooperation.
