MGD623S

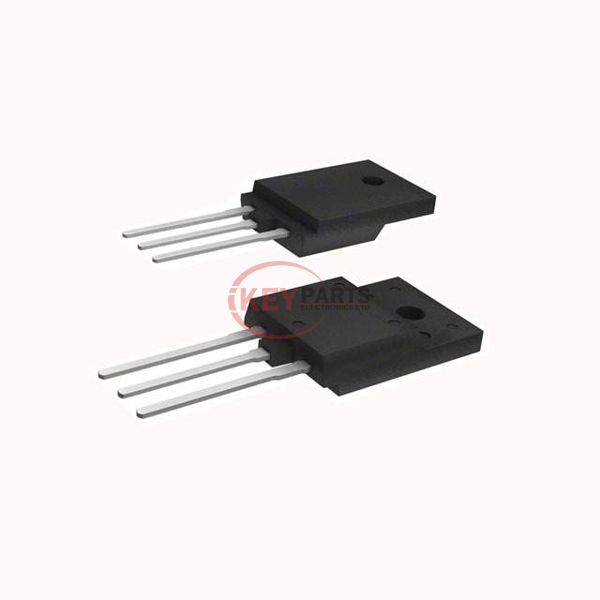

Enlarger

Lmages are for reference only See Product Specitications

Sanken Electric Co., Ltd. MGD623S

Manufacturer :
Sanken Electric Co., Ltd.
Mfr. Part # :
MGD623S
Description
IGBT 600V 50A 150W TO3P
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MGD623S PDF
In Stock
678
MGD623S Tech Specifications
Series-
PackageBulk
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)50 A
Current - Collector Pulsed (Icm)100 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 50A
Power - Max150 W
Switching Energy-
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C75ns/300ns
Test Condition300V, 50A, 39Ohm, 15V
Reverse Recovery Time (trr)300 ns
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3 Full Pack
Supplier Device PackageTO-3P
Request Quote Now
Request Quote Now

We can supply MGD623S, use the request quote form to request MGD623S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MGD623S. The price and lead time for MGD623S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MGD623S. We look forward to working with you to establish long-term relations of cooperation.
