Series | - | |
Package | Bulk | |
Part Status | Active | |
IGBT Type | - | |
Voltage - Collector Emitter Breakdown (Max) | 600 V | |
Current - Collector (Ic) (Max) | 19 A | |
Current - Collector Pulsed (Icm) | 38 A | |
Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 15A | |
Power - Max | 52 W | |
Switching Energy | 127µJ (on), 334µJ (off) | |
Input Type | Standard | |
Gate Charge | 84 nC | |
Td (on/off) @ 25°C | 30ns/173ns | |
Test Condition | 400V, 15A, 22Ohm, 15V | |
Reverse Recovery Time (trr) | 67 ns | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |

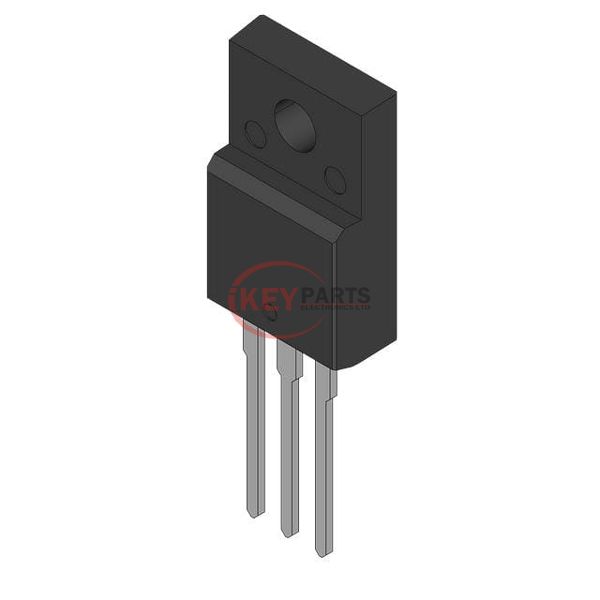

Package / Case | TO-220-3 Full Pack | |
Supplier Device Package | TO220 Full Pack |
We can supply IRGIB15B60KD1P-IR, use the request quote form to request IRGIB15B60KD1P-IR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRGIB15B60KD1P-IR. The price and lead time for IRGIB15B60KD1P-IR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRGIB15B60KD1P-IR. We look forward to working with you to establish long-term relations of cooperation.
![]() |
