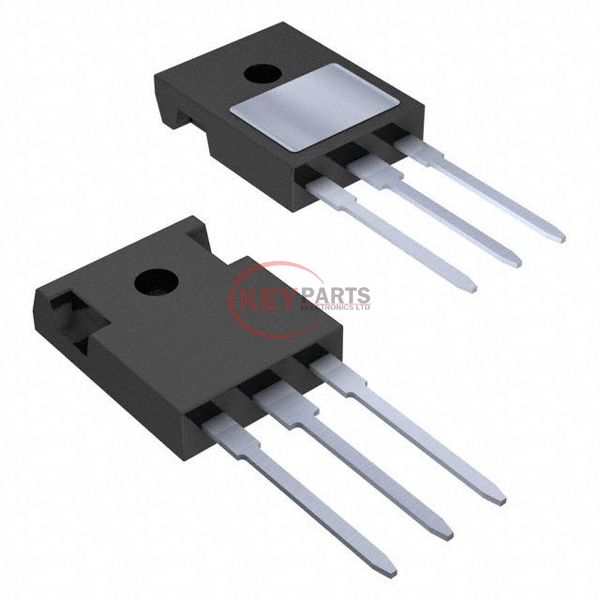

IXYJ20N120C3D1

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXYJ20N120C3D1

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXYJ20N120C3D1
Description
IGBT 1200V 21A 105W TO247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXYJ20N120C3D1 PDF
In Stock
180
IXYJ20N120C3D1 Tech Specifications
SeriesGenX3™, XPT™
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)21 A
Current - Collector Pulsed (Icm)84 A
Vce(on) (Max) @ Vge, Ic3.4V @ 15V, 20A
Power - Max105 W
Switching Energy1.3mJ (on), 500µJ (off)
Input TypeStandard
Gate Charge53 nC
Td (on/off) @ 25°C20ns/90ns
Test Condition600V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)195 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageISO247™
Request Quote Now
Request Quote Now

We can supply IXYJ20N120C3D1, use the request quote form to request IXYJ20N120C3D1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXYJ20N120C3D1. The price and lead time for IXYJ20N120C3D1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXYJ20N120C3D1. We look forward to working with you to establish long-term relations of cooperation.
