APT80GA90S

Enlarger

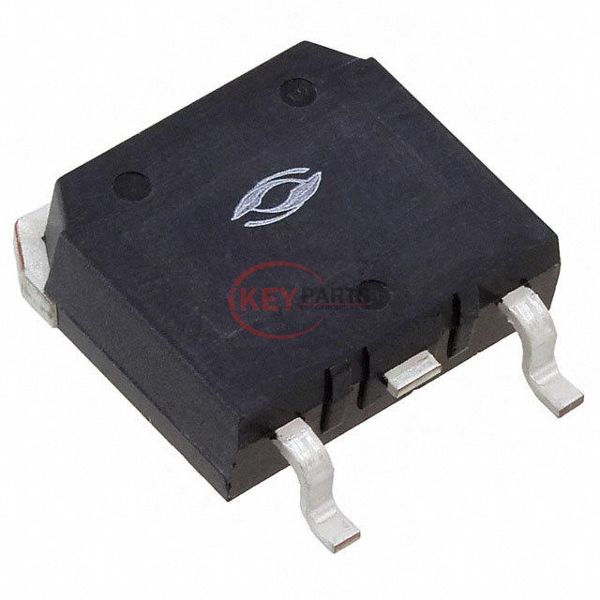

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT80GA90S

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT80GA90S
Description
IGBT PT MOS 8 SINGLE 900 V 80 A
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT80GA90S PDF
APT80GA90S Tech Specifications
SeriesPOWER MOS 8®
PackageTube
Part StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)900 V
Current - Collector (Ic) (Max)145 A
Current - Collector Pulsed (Icm)239 A
Vce(on) (Max) @ Vge, Ic3.1V @ 15V, 47A
Power - Max625 W
Switching Energy1.625mJ (on), 1.389mJ (off)
Input TypeStandard
Gate Charge200 nC
Td (on/off) @ 25°C18ns/149ns
Test Condition600V, 47A, 4.7Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device PackageD3PAK
Request Quote Now
Request Quote Now

We can supply APT80GA90S, use the request quote form to request APT80GA90S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT80GA90S. The price and lead time for APT80GA90S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT80GA90S. We look forward to working with you to establish long-term relations of cooperation.
