Series | - | |
Package | Bulk | |
Part Status | Obsolete | |
IGBT Type | Trench | |
Voltage - Collector Emitter Breakdown (Max) | 1.2 V | |
Current - Collector (Ic) (Max) | 116 A | |
Current - Collector Pulsed (Icm) | 150 A | |
Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 50A | |
Power - Max | 462 W | |
Switching Energy | 3.6mJ (on), 2.2mJ (off) | |
Input Type | Standard | |
Gate Charge | 440 nC | |
Td (on/off) @ 25°C | 35ns/430ns | |
Test Condition | 600V, 50A, 5Ohm, 15V | |
Reverse Recovery Time (trr) | 190 ns | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Through Hole | |

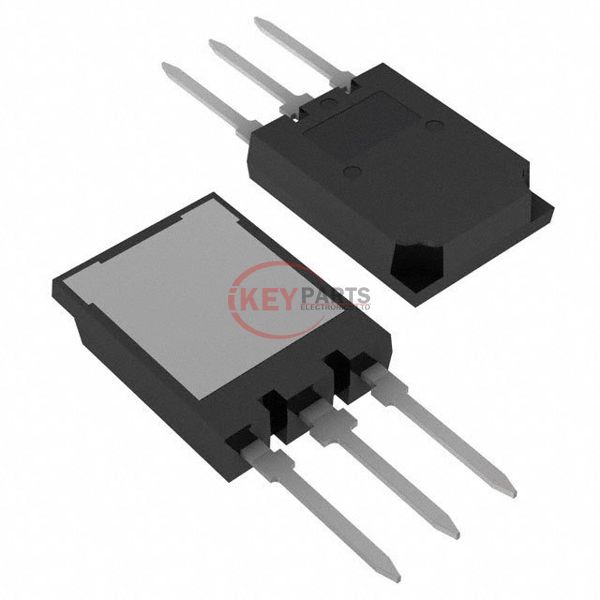

Package / Case | TO-247-3 | |
Supplier Device Package | SUPER-247™ (TO-274AA) |
We can supply IRG7PSH50UDPBF, use the request quote form to request IRG7PSH50UDPBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRG7PSH50UDPBF. The price and lead time for IRG7PSH50UDPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRG7PSH50UDPBF. We look forward to working with you to establish long-term relations of cooperation.
![]() |
