FGY40T120SMD

Enlarger

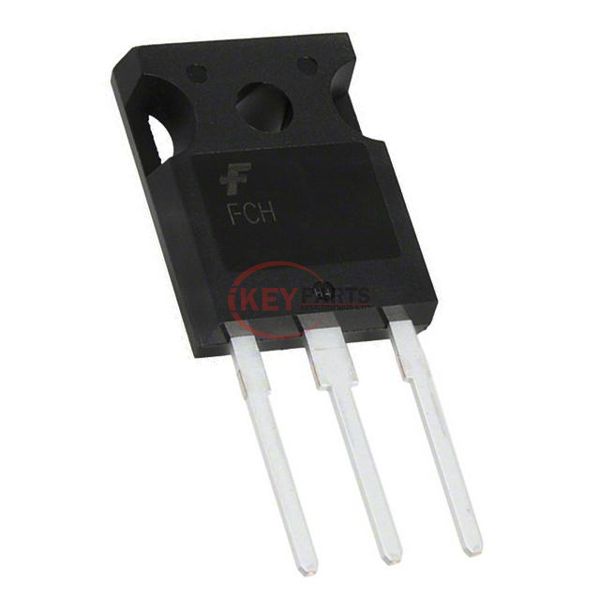

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FGY40T120SMD

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGY40T120SMD
Description
IGBT 1200V 80A TO-247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGY40T120SMD PDF
FGY40T120SMD Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 40A
Power - Max882 W
Switching Energy2.7mJ (on), 1.1mJ (off)
Input TypeStandard
Gate Charge370 nC
Td (on/off) @ 25°C40ns/475ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)65 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
Request Quote Now
Request Quote Now

We can supply FGY40T120SMD, use the request quote form to request FGY40T120SMD pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGY40T120SMD. The price and lead time for FGY40T120SMD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGY40T120SMD. We look forward to working with you to establish long-term relations of cooperation.
