RGS50TSX2HRC11

Enlarger

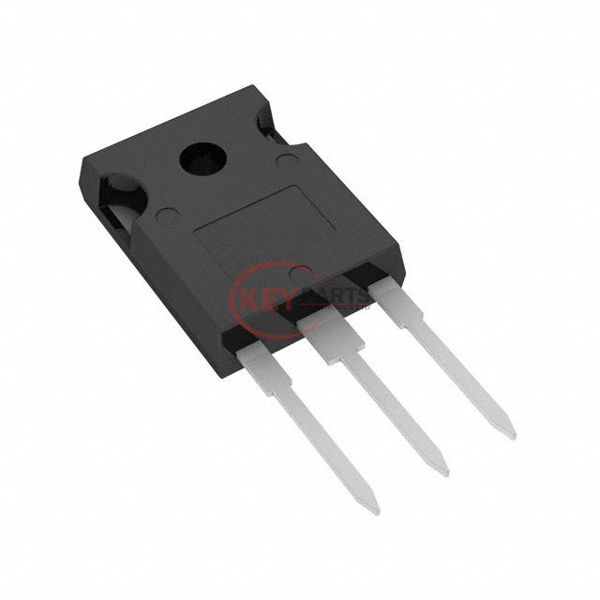

Lmages are for reference only See Product Specitications

ROHM Semiconductor RGS50TSX2HRC11

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RGS50TSX2HRC11
Description
1200V 25A FIELD STOP TRENCH IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RGS50TSX2HRC11 PDF
RGS50TSX2HRC11 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)50 A
Current - Collector Pulsed (Icm)75 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 25A
Power - Max395 W
Switching Energy1.4mJ (on), 1.65mJ (off)
Input TypeStandard
Gate Charge67 nC
Td (on/off) @ 25°C37ns/140ns
Test Condition600V, 25A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247N
Request Quote Now
Request Quote Now

We can supply RGS50TSX2HRC11, use the request quote form to request RGS50TSX2HRC11 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RGS50TSX2HRC11. The price and lead time for RGS50TSX2HRC11 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RGS50TSX2HRC11. We look forward to working with you to establish long-term relations of cooperation.
