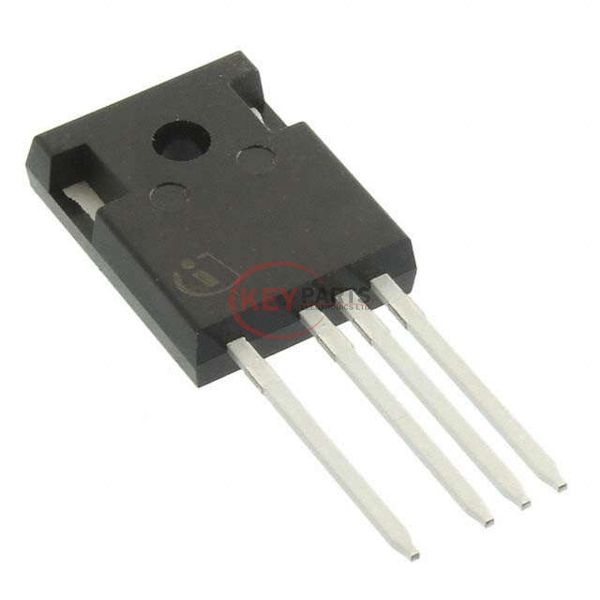

IKZ75N65EH5XKSA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IKZ75N65EH5XKSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IKZ75N65EH5XKSA1
Description
IGBT 650V 90A W/DIO TO247-4
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IKZ75N65EH5XKSA1 PDF
IKZ75N65EH5XKSA1 Tech Specifications
SeriesTrenchStop™ 5
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)90 A
Current - Collector Pulsed (Icm)300 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 75A
Power - Max395 W
Switching Energy680µJ (on), 430µJ (off)
Input TypeStandard
Gate Charge166 nC
Td (on/off) @ 25°C26ns/347ns
Test Condition400V, 37.5A, 10Ohm, 15V
Reverse Recovery Time (trr)58 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackagePG-TO247-4
Request Quote Now
Request Quote Now

We can supply IKZ75N65EH5XKSA1, use the request quote form to request IKZ75N65EH5XKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IKZ75N65EH5XKSA1. The price and lead time for IKZ75N65EH5XKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IKZ75N65EH5XKSA1. We look forward to working with you to establish long-term relations of cooperation.
