IXYX140N120A4

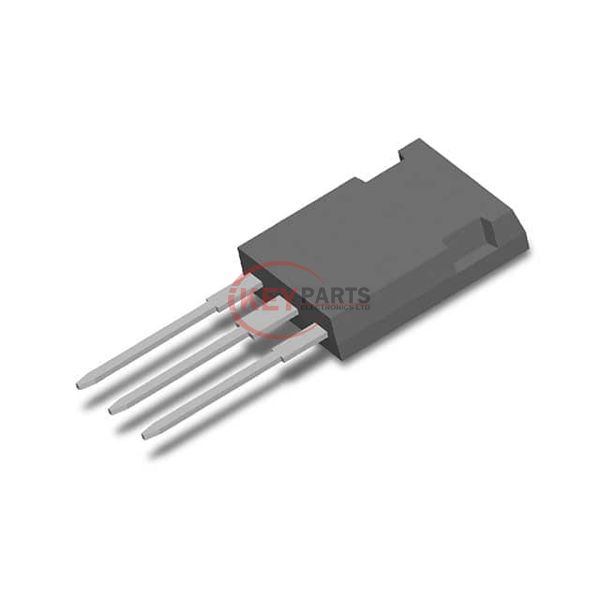

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXYX140N120A4

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXYX140N120A4
Description
IGBT 140A 1200V PLUS247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXYX140N120A4 PDF
IXYX140N120A4 Tech Specifications
SeriesXPT™, GenX4™
PackageTube
Part StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)480 A
Current - Collector Pulsed (Icm)1200 A
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 140A
Power - Max1500 W
Switching Energy4.9mJ (on), 12mJ (off)
Input TypeStandard
Gate Charge420 nC
Td (on/off) @ 25°C52ns/590ns
Test Condition600V, 70A, 1.5Ohm, 15V
Reverse Recovery Time (trr)47 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackagePLUS247™-3
Request Quote Now
Request Quote Now

We can supply IXYX140N120A4, use the request quote form to request IXYX140N120A4 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXYX140N120A4. The price and lead time for IXYX140N120A4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXYX140N120A4. We look forward to working with you to establish long-term relations of cooperation.
