IXYA8N250CHV

Enlarger

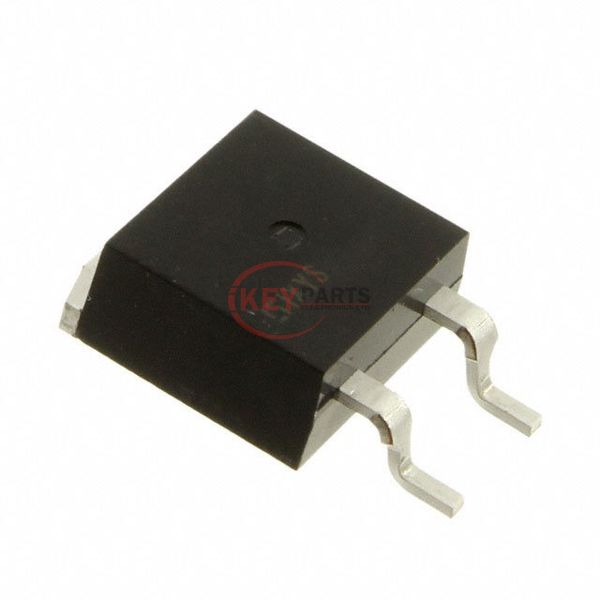

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXYA8N250CHV

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXYA8N250CHV
Description
IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXYA8N250CHV PDF
In Stock
600
IXYA8N250CHV Tech Specifications
SeriesXPT™
PackageBulk
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)2500 V
Current - Collector (Ic) (Max)29 A
Current - Collector Pulsed (Icm)70 A
Vce(on) (Max) @ Vge, Ic4V @ 15V, 8A
Power - Max280 W
Switching Energy2.6mJ (on), 1.07mJ (off)
Input TypeStandard
Gate Charge45 nC
Td (on/off) @ 25°C11ns/180ns
Test Condition1250V, 8A, 15Ohm, 15V
Reverse Recovery Time (trr)5 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device PackageTO-263HV
Request Quote Now
Request Quote Now

We can supply IXYA8N250CHV, use the request quote form to request IXYA8N250CHV pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXYA8N250CHV. The price and lead time for IXYA8N250CHV depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXYA8N250CHV. We look forward to working with you to establish long-term relations of cooperation.
