IGZ50N65H5XKSA1

Enlarger

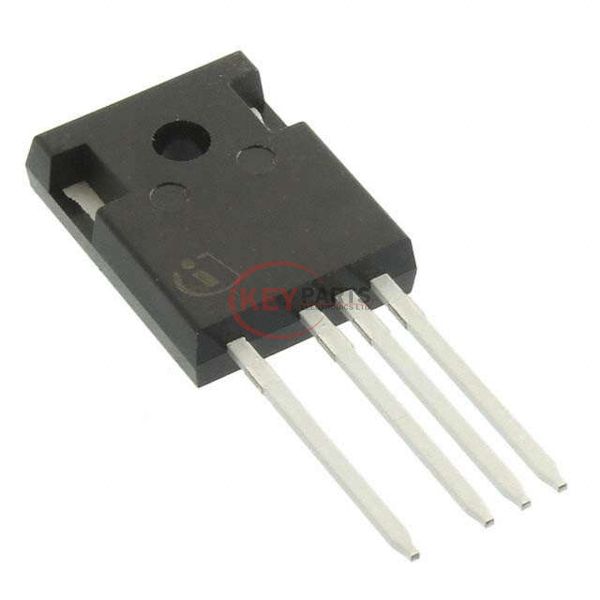

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IGZ50N65H5XKSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IGZ50N65H5XKSA1
Description
IGBT TRENCH 650V 85A TO247-4
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IGZ50N65H5XKSA1 PDF
IGZ50N65H5XKSA1 Tech Specifications
SeriesTrenchStop™ 5
PackageTube
Part StatusActive
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)85 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 50A
Power - Max273 W
Switching Energy410µJ (on), 190µJ (off)
Input TypeStandard
Gate Charge109 nC
Td (on/off) @ 25°C20ns/250ns
Test Condition400V, 25A, 12Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackagePG-TO247-4
Request Quote Now
Request Quote Now

We can supply IGZ50N65H5XKSA1, use the request quote form to request IGZ50N65H5XKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IGZ50N65H5XKSA1. The price and lead time for IGZ50N65H5XKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IGZ50N65H5XKSA1. We look forward to working with you to establish long-term relations of cooperation.
