IXYA20N120C4HV

Enlarger

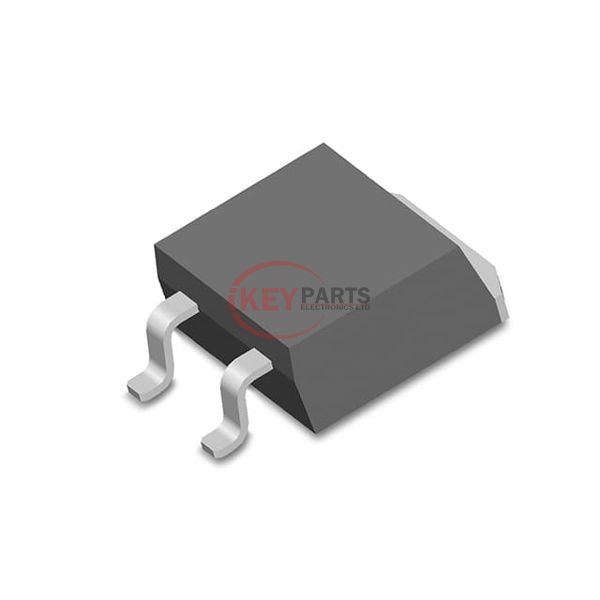

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXYA20N120C4HV

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXYA20N120C4HV
Description
IGBT 1200V 20A X4 HSPEED TO263D2
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXYA20N120C4HV PDF
IXYA20N120C4HV Tech Specifications
SeriesGenX4™, XPT™
PackageTube
Part StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)68 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 20A
Power - Max375 W
Switching Energy4.4mJ (on), 1mJ (off)
Input TypeStandard
Gate Charge44 nC
Td (on/off) @ 25°C14ns/160ns
Test Condition960mV, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)53 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device PackageTO-263HV
Request Quote Now
Request Quote Now

We can supply IXYA20N120C4HV, use the request quote form to request IXYA20N120C4HV pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXYA20N120C4HV. The price and lead time for IXYA20N120C4HV depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXYA20N120C4HV. We look forward to working with you to establish long-term relations of cooperation.
