IKQ100N60TXKSA1

Enlarger

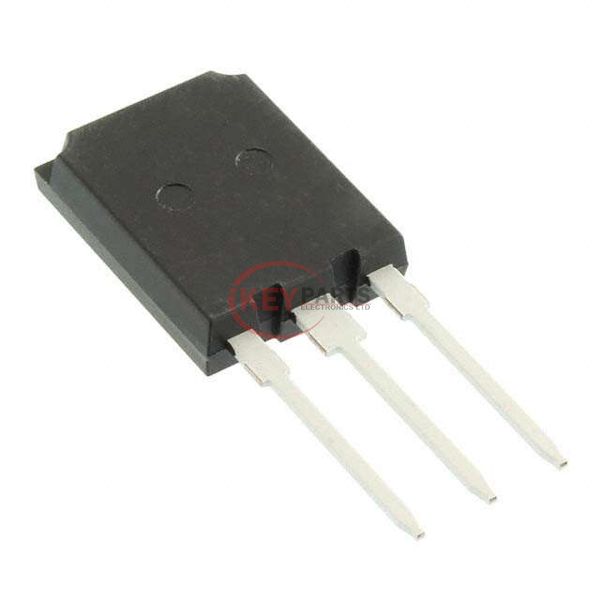

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IKQ100N60TXKSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IKQ100N60TXKSA1
Description
IGBT TRENCH/FS 600V 160A TO247-3
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IKQ100N60TXKSA1 PDF
IKQ100N60TXKSA1 Tech Specifications
SeriesTrenchStop™
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)160 A
Current - Collector Pulsed (Icm)400 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 100A
Power - Max714 W
Switching Energy3.1mJ (on), 2.5mJ (off)
Input TypeStandard
Gate Charge610 nC
Td (on/off) @ 25°C30ns/290ns
Test Condition400V, 100A, 3.6Ohm, 15V
Reverse Recovery Time (trr)230 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackagePG-TO247-3-46
Request Quote Now
Request Quote Now

We can supply IKQ100N60TXKSA1, use the request quote form to request IKQ100N60TXKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IKQ100N60TXKSA1. The price and lead time for IKQ100N60TXKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IKQ100N60TXKSA1. We look forward to working with you to establish long-term relations of cooperation.
