APT75GN120LG

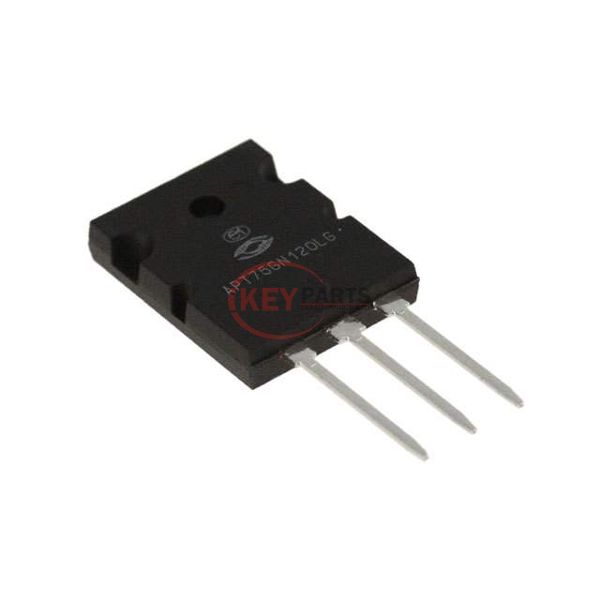

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT75GN120LG

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT75GN120LG
Description
IGBT 1200V 200A 833W TO264
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT75GN120LG PDF
APT75GN120LG Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)200 A
Current - Collector Pulsed (Icm)225 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 75A
Power - Max833 W
Switching Energy8620µJ (on), 11400µJ (off)
Input TypeStandard
Gate Charge425 nC
Td (on/off) @ 25°C60ns/620ns
Test Condition800V, 75A, 1Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264 [L]
Request Quote Now
Request Quote Now

We can supply APT75GN120LG, use the request quote form to request APT75GN120LG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT75GN120LG. The price and lead time for APT75GN120LG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT75GN120LG. We look forward to working with you to establish long-term relations of cooperation.
