HGT1S20N36G3VL

Enlarger

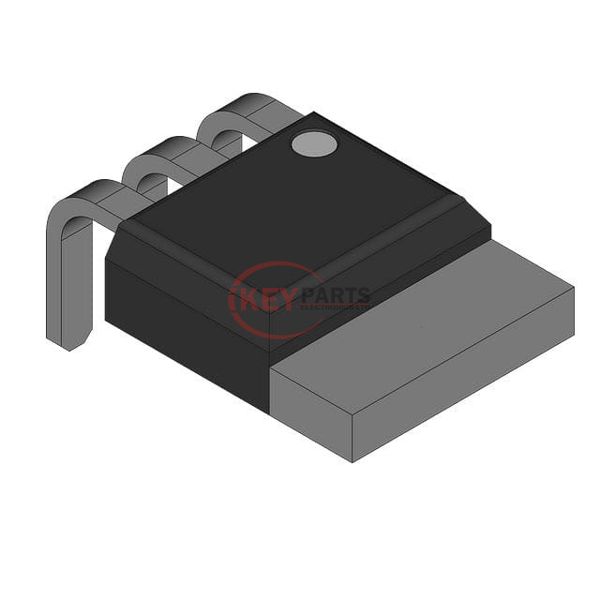

Lmages are for reference only See Product Specitications

Rochester Electronics HGT1S20N36G3VL

Manufacturer :
Rochester Electronics
Mfr. Part # :
HGT1S20N36G3VL
Description
N-CHANNEL IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
HGT1S20N36G3VL PDF
HGT1S20N36G3VL Tech Specifications
Series-
PackageTube
Part StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)395 V
Current - Collector (Ic) (Max)37.7 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic1.9V @ 5V, 20A
Power - Max150 W
Switching Energy-
Input TypeLogic
Gate Charge28.7 nC
Td (on/off) @ 25°C-/15µs
Test Condition300V, 10A, 25Ohm, 5V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device PackageI2PAK (TO-262)
Request Quote Now
Request Quote Now

We can supply HGT1S20N36G3VL, use the request quote form to request HGT1S20N36G3VL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HGT1S20N36G3VL. The price and lead time for HGT1S20N36G3VL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HGT1S20N36G3VL. We look forward to working with you to establish long-term relations of cooperation.
