RGC80TSX8RGC11

Enlarger

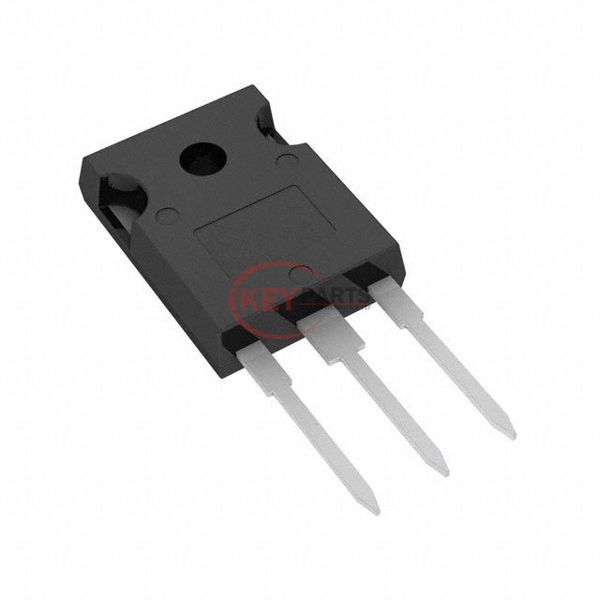

Lmages are for reference only See Product Specitications

ROHM Semiconductor RGC80TSX8RGC11

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RGC80TSX8RGC11
Description
IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RGC80TSX8RGC11 PDF
RGC80TSX8RGC11 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1800 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic5V @ 15V, 40A
Power - Max535 W
Switching Energy1.85mJ (on), 1.6mJ (off)
Input TypeStandard
Gate Charge468 nC
Td (on/off) @ 25°C80ns/565ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247N
Request Quote Now
Request Quote Now

We can supply RGC80TSX8RGC11, use the request quote form to request RGC80TSX8RGC11 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RGC80TSX8RGC11. The price and lead time for RGC80TSX8RGC11 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RGC80TSX8RGC11. We look forward to working with you to establish long-term relations of cooperation.
