STGFW20H65FB

Enlarger

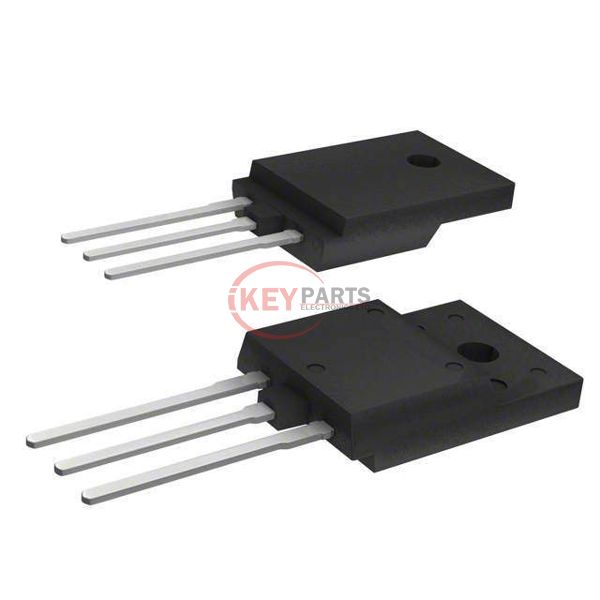

Lmages are for reference only See Product Specitications

STMicroelectronics STGFW20H65FB

Manufacturer :
STMicroelectronics
Mfr. Part # :
STGFW20H65FB
Description
IGBT 650V 40A 52W TO3PF
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STGFW20H65FB PDF
In Stock
215
STGFW20H65FB Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)80 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 20A
Power - Max52 W
Switching Energy77µJ (on), 170µJ (off)
Input TypeStandard
Gate Charge120 nC
Td (on/off) @ 25°C30ns/139ns
Test Condition400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3PFM, SC-93-3
Supplier Device PackageTO-3PF
Request Quote Now
Request Quote Now

We can supply STGFW20H65FB, use the request quote form to request STGFW20H65FB pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STGFW20H65FB. The price and lead time for STGFW20H65FB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STGFW20H65FB. We look forward to working with you to establish long-term relations of cooperation.
