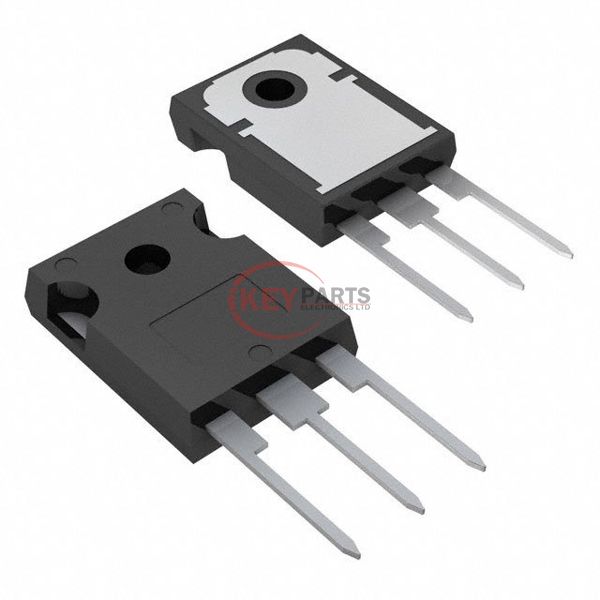

STMicroelectronics STGW15M120DF3

Manufacturer :
STMicroelectronics
Mfr. Part # :
STGW15M120DF3
Description
IGBT 1200V 30A 259W
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STGW15M120DF3 PDF
STGW15M120DF3 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)30 A
Current - Collector Pulsed (Icm)60 A
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 15A
Power - Max259 W
Switching Energy550µJ (on), 850µJ (off)
Input TypeStandard
Gate Charge226 nC
Td (on/off) @ 25°C26ns/122ns
Test Condition600V, 15A, 22Ohm, 15V
Reverse Recovery Time (trr)270 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
