STGFW20V60F

Enlarger

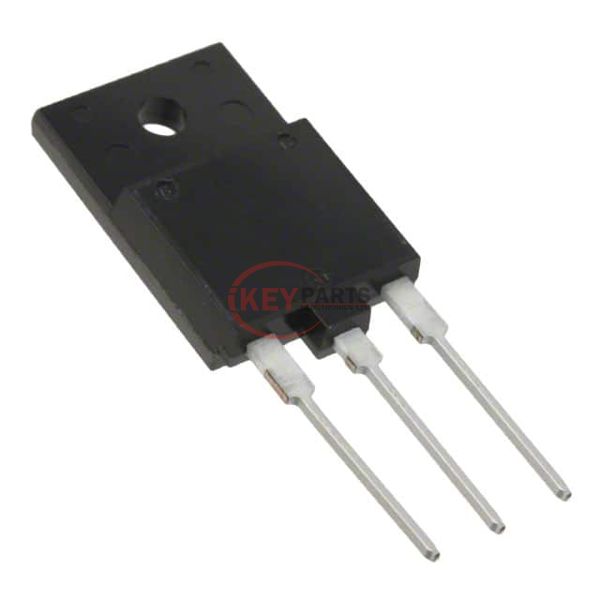

Lmages are for reference only See Product Specitications

STMicroelectronics STGFW20V60F

Manufacturer :
STMicroelectronics
Mfr. Part # :
STGFW20V60F
Description
IGBT 600V 40A 52W TO3PF
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STGFW20V60F PDF
In Stock
864
STGFW20V60F Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)80 A
Vce(on) (Max) @ Vge, Ic2.2V @ 15V, 20A
Power - Max52 W
Switching Energy200µJ (on), 130µJ (off)
Input TypeStandard
Gate Charge116 nC
Td (on/off) @ 25°C38ns/149ns
Test Condition400V, 20A, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3 Full Pack
Supplier Device PackageTO-3PF
Request Quote Now
Request Quote Now

We can supply STGFW20V60F, use the request quote form to request STGFW20V60F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STGFW20V60F. The price and lead time for STGFW20V60F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STGFW20V60F. We look forward to working with you to establish long-term relations of cooperation.
