FGD5T120SH

Enlarger

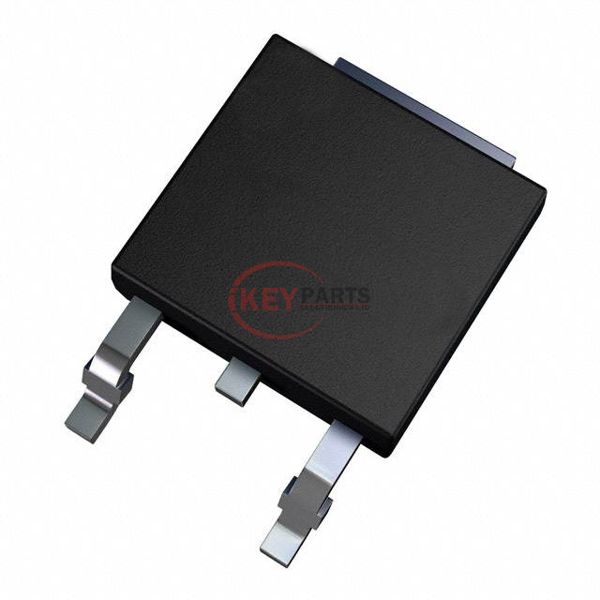

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FGD5T120SH

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGD5T120SH
Description
IGBT 1200V 5A FS3 DPAK
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGD5T120SH PDF
In Stock
818
FGD5T120SH Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)10 A
Current - Collector Pulsed (Icm)12.5 A
Vce(on) (Max) @ Vge, Ic3.6V @ 15V, 5A
Power - Max69 W
Switching Energy247µJ (on), 94µJ (off)
Input TypeStandard
Gate Charge6.7 nC
Td (on/off) @ 25°C4.8ns/24.8ns
Test Condition600V, 5A, 30Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageDPAK
Request Quote Now
Request Quote Now

We can supply FGD5T120SH, use the request quote form to request FGD5T120SH pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGD5T120SH. The price and lead time for FGD5T120SH depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGD5T120SH. We look forward to working with you to establish long-term relations of cooperation.
