Series | - | |
Package | Tube | |
Part Status | Active | |
IGBT Type | NPT, Trench Field Stop | |
Voltage - Collector Emitter Breakdown (Max) | 1200 V | |
Current - Collector (Ic) (Max) | 94 A | |
Current - Collector Pulsed (Icm) | 105 A | |
Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 35A | |
Power - Max | 379 W | |
Switching Energy | -, 2.315mJ (off) | |
Input Type | Standard | |
Gate Charge | 220 nC | |
Td (on/off) @ 25°C | 24ns, 300ns | |
Test Condition | 800V, 35A, 2.2Ohm, 15V | |
Reverse Recovery Time (trr) | - | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

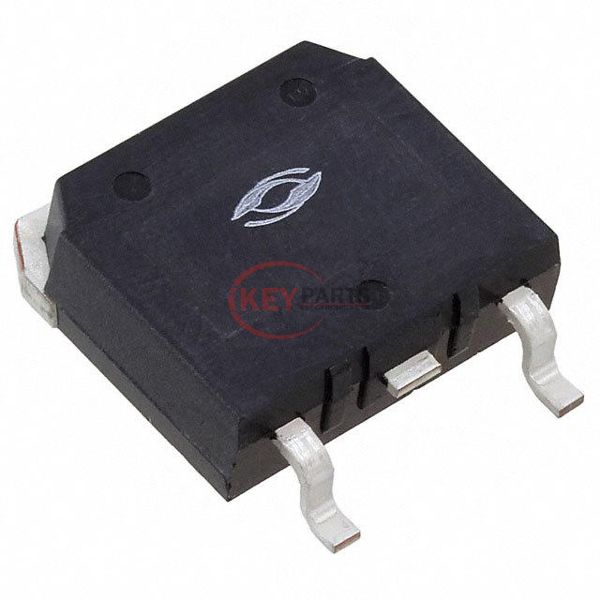

Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | |
Supplier Device Package | D3PAK |
We can supply APT35GN120SG, use the request quote form to request APT35GN120SG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT35GN120SG. The price and lead time for APT35GN120SG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT35GN120SG. We look forward to working with you to establish long-term relations of cooperation.
![]() |
