RJH60D5BDPQ-E0#T2

Enlarger

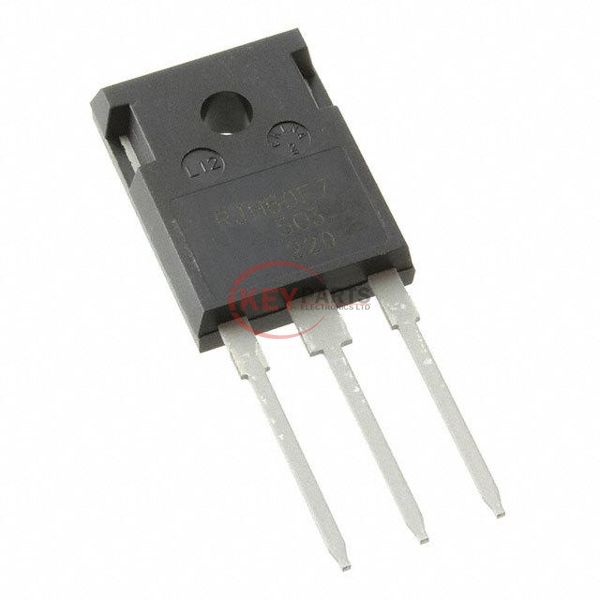

Lmages are for reference only See Product Specitications

Renesas Electronics America RJH60D5BDPQ-E0#T2

Manufacturer :
Renesas Electronics America
Mfr. Part # :
RJH60D5BDPQ-E0#T2
Description
IGBT 600V 75A 200W TO-247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RJH60D5BDPQ-E0#T2 PDF
In Stock
796
RJH60D5BDPQ-E0#T2 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)75 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic2.2V @ 15V, 37A
Power - Max200 W
Switching Energy400µJ (on), 810µJ (off)
Input TypeStandard
Gate Charge78 nC
Td (on/off) @ 25°C50ns/130ns
Test Condition300V, 37A, 5Ohm, 15V
Reverse Recovery Time (trr)25 ns
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
Request Quote Now
Request Quote Now

We can supply RJH60D5BDPQ-E0#T2, use the request quote form to request RJH60D5BDPQ-E0#T2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RJH60D5BDPQ-E0#T2. The price and lead time for RJH60D5BDPQ-E0#T2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RJH60D5BDPQ-E0#T2. We look forward to working with you to establish long-term relations of cooperation.
