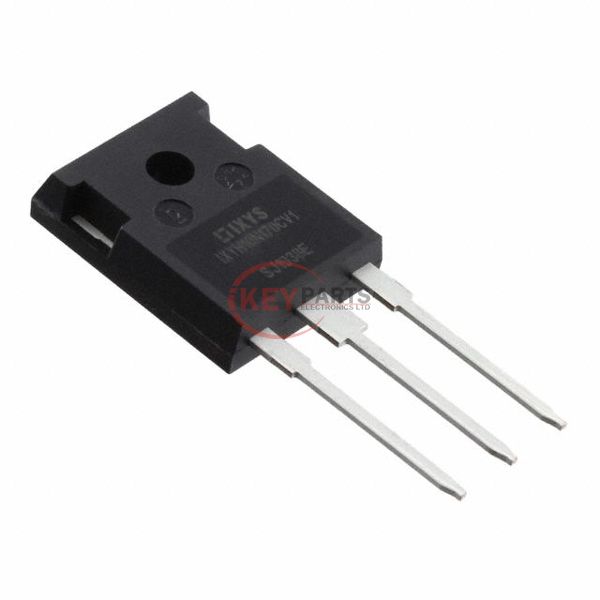

IXYH10N170CV1

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXYH10N170CV1

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXYH10N170CV1
Description
IGBT 1.7KV 36A TO247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXYH10N170CV1 PDF
IXYH10N170CV1 Tech Specifications
SeriesXPT™
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)36 A
Current - Collector Pulsed (Icm)84 A
Vce(on) (Max) @ Vge, Ic3.8V @ 15V, 10A
Power - Max280 W
Switching Energy1.4mJ (on), 700µJ (off)
Input TypeStandard
Gate Charge46 nC
Td (on/off) @ 25°C14ns/130ns
Test Condition850V, 10A, 10Ohm, 15V
Reverse Recovery Time (trr)160 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 (IXYH)
Request Quote Now
Request Quote Now

We can supply IXYH10N170CV1, use the request quote form to request IXYH10N170CV1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXYH10N170CV1. The price and lead time for IXYH10N170CV1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXYH10N170CV1. We look forward to working with you to establish long-term relations of cooperation.
