APT100GN60LDQ4G

Enlarger

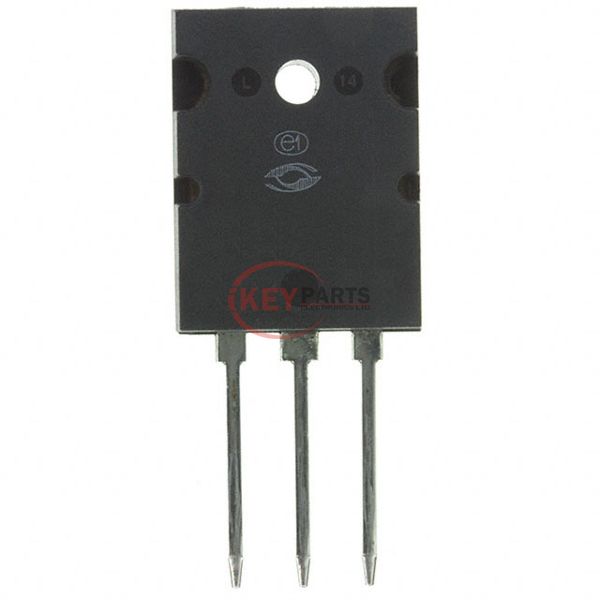

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT100GN60LDQ4G

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT100GN60LDQ4G
Description
IGBT 600V 229A 625W TO264
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT100GN60LDQ4G PDF
APT100GN60LDQ4G Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)229 A
Current - Collector Pulsed (Icm)300 A
Vce(on) (Max) @ Vge, Ic1.85V @ 15V, 100A
Power - Max625 W
Switching Energy4.75mJ (on), 2.675mJ (off)
Input TypeStandard
Gate Charge600 nC
Td (on/off) @ 25°C31ns/310ns
Test Condition400V, 100A, 1Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264 [L]
Request Quote Now
Request Quote Now

We can supply APT100GN60LDQ4G, use the request quote form to request APT100GN60LDQ4G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT100GN60LDQ4G. The price and lead time for APT100GN60LDQ4G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT100GN60LDQ4G. We look forward to working with you to establish long-term relations of cooperation.
