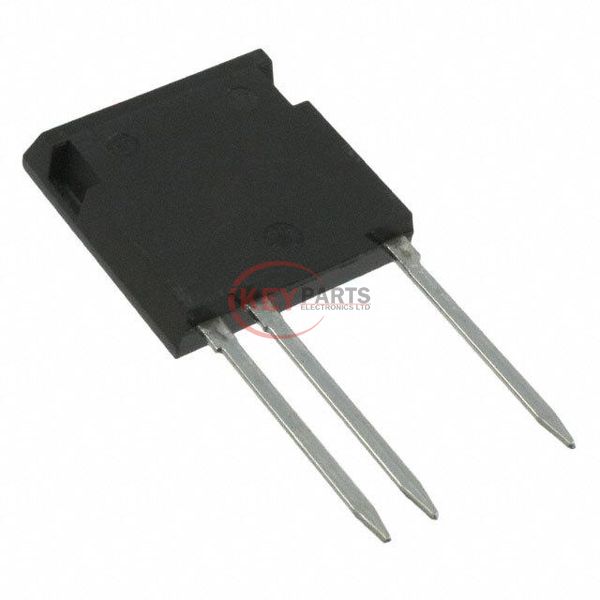

IXGF20N250

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXGF20N250

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXGF20N250
Description
IGBT 2500V 23A 100W I4-PAK
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXGF20N250 PDF
IXGF20N250 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)2500 V
Current - Collector (Ic) (Max)23 A
Current - Collector Pulsed (Icm)105 A
Vce(on) (Max) @ Vge, Ic3.1V @ 15V, 20A
Power - Max100 W
Switching Energy-
Input TypeStandard
Gate Charge53 nC
Td (on/off) @ 25°C-
Test Condition-
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Casei4-Pac™-5 (3 Leads)
Supplier Device PackageISOPLUS i4-PAC™
Request Quote Now
Request Quote Now

We can supply IXGF20N250, use the request quote form to request IXGF20N250 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXGF20N250. The price and lead time for IXGF20N250 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXGF20N250. We look forward to working with you to establish long-term relations of cooperation.
