FGH40T120SQDNL4

Enlarger

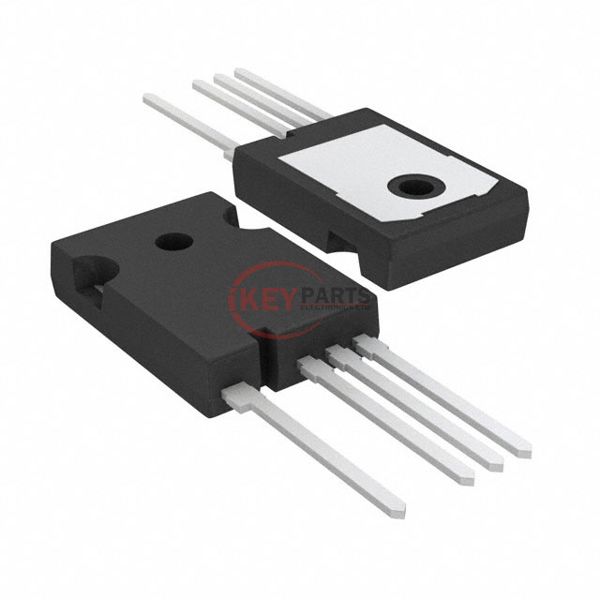

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FGH40T120SQDNL4

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGH40T120SQDNL4
Description
IGBT 1200V 40A UFS FOR SO
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGH40T120SQDNL4 PDF
FGH40T120SQDNL4 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)160 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic1.95V @ 15V, 40A
Power - Max454 W
Switching Energy1.4mJ (on), 1.1mJ (off)
Input TypeStandard
Gate Charge221 nC
Td (on/off) @ 25°C46ns/220ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)166 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackageTO-247-4L
Request Quote Now
Request Quote Now

We can supply FGH40T120SQDNL4, use the request quote form to request FGH40T120SQDNL4 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGH40T120SQDNL4. The price and lead time for FGH40T120SQDNL4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGH40T120SQDNL4. We look forward to working with you to establish long-term relations of cooperation.
