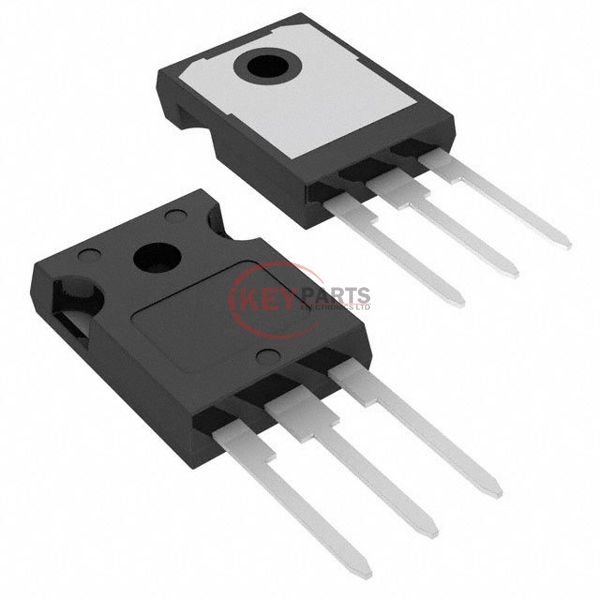

Sanyo Semiconductor/ON Semiconductor NGTB40N120L3WG

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NGTB40N120L3WG
Description
IGBT 1200V 160A TO247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NGTB40N120L3WG PDF
NGTB40N120L3WG Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)160 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 40A
Power - Max454 W
Switching Energy1.5mJ (on), 1.5mJ (off)
Input TypeStandard
Gate Charge220 nC
Td (on/off) @ 25°C18ns/150ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)86 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
Request Quote Now
Request Quote Now

We can supply NGTB40N120L3WG, use the request quote form to request NGTB40N120L3WG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NGTB40N120L3WG. The price and lead time for NGTB40N120L3WG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NGTB40N120L3WG. We look forward to working with you to establish long-term relations of cooperation.
