FGL40N120ANDTU

Enlarger

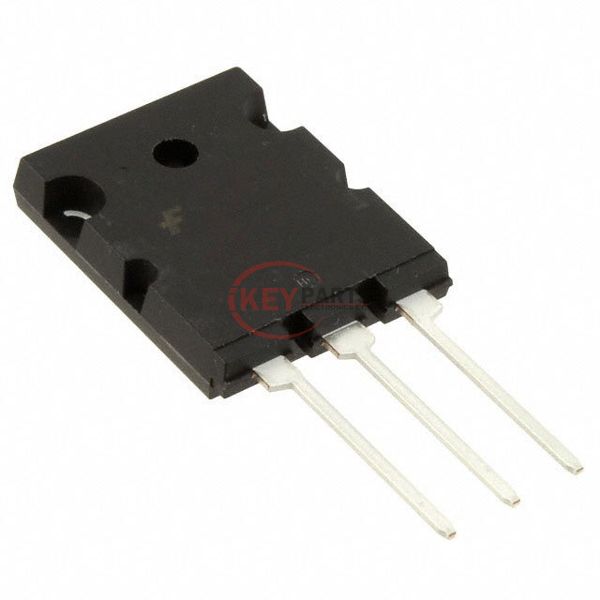

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FGL40N120ANDTU

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGL40N120ANDTU
Description
IGBT NPT 1200V 64A TO264-3
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGL40N120ANDTU PDF
FGL40N120ANDTU Tech Specifications
Series-
PackageTube
Part StatusNot For New Designs
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)64 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic3.2V @ 15V, 40A
Power - Max500 W
Switching Energy2.3mJ (on), 1.1mJ (off)
Input TypeStandard
Gate Charge220 nC
Td (on/off) @ 25°C15ns/110ns
Test Condition600V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr)112 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264-3
Request Quote Now
Request Quote Now

We can supply FGL40N120ANDTU, use the request quote form to request FGL40N120ANDTU pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGL40N120ANDTU. The price and lead time for FGL40N120ANDTU depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGL40N120ANDTU. We look forward to working with you to establish long-term relations of cooperation.
