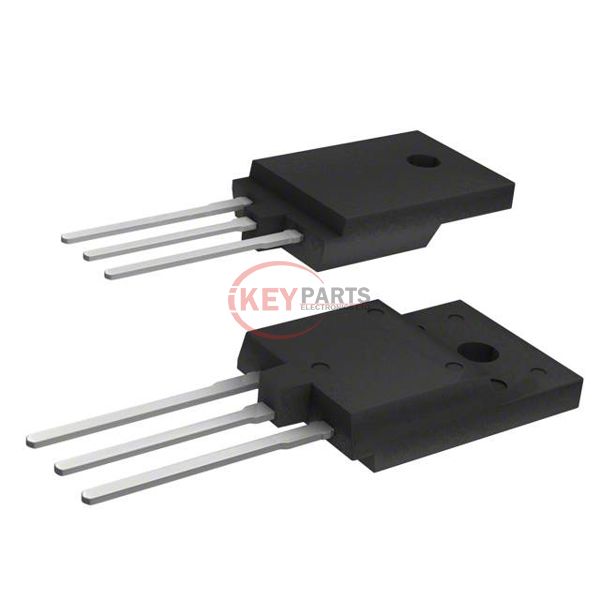

STGFW30NC60V

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STGFW30NC60V

Manufacturer :
STMicroelectronics
Mfr. Part # :
STGFW30NC60V
Description
IGBT 600V 36A 80W TO3PF
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STGFW30NC60V PDF
STGFW30NC60V Tech Specifications
SeriesPowerMESH™
PackageTube
Part StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)36 A
Current - Collector Pulsed (Icm)100 A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 20A
Power - Max80 W
Switching Energy220µJ (on), 330µJ (off)
Input TypeStandard
Gate Charge100 nC
Td (on/off) @ 25°C31ns/100ns
Test Condition390V, 20A, 3.3Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3 Full Pack
Supplier Device PackageTO-3PF
Request Quote Now
Request Quote Now

We can supply STGFW30NC60V, use the request quote form to request STGFW30NC60V pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STGFW30NC60V. The price and lead time for STGFW30NC60V depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STGFW30NC60V. We look forward to working with you to establish long-term relations of cooperation.
