IXYH25N250CHV

Enlarger

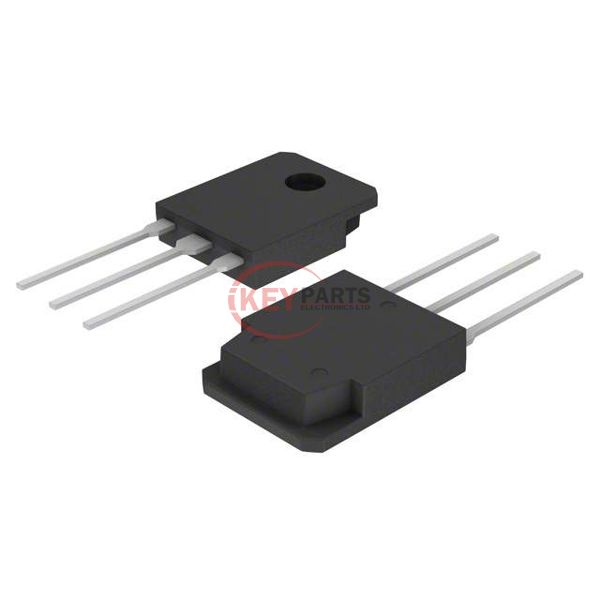

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXYH25N250CHV

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXYH25N250CHV
Description
IGBT 2500V 235A TO-247HV
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXYH25N250CHV PDF
IXYH25N250CHV Tech Specifications
SeriesXPT™
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)2500 V
Current - Collector (Ic) (Max)95 A
Current - Collector Pulsed (Icm)235 A
Vce(on) (Max) @ Vge, Ic4V @ 15V, 25A
Power - Max937 W
Switching Energy8.3mJ (on), 7.3mJ (off)
Input TypeStandard
Gate Charge147 nC
Td (on/off) @ 25°C15ns/230ns
Test Condition1250V, 25A, 5Ohm, 15V
Reverse Recovery Time (trr)34 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247HV (IXYH)
Request Quote Now
Request Quote Now

We can supply IXYH25N250CHV, use the request quote form to request IXYH25N250CHV pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXYH25N250CHV. The price and lead time for IXYH25N250CHV depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXYH25N250CHV. We look forward to working with you to establish long-term relations of cooperation.
