TSM2537CQ RFG

Enlarger

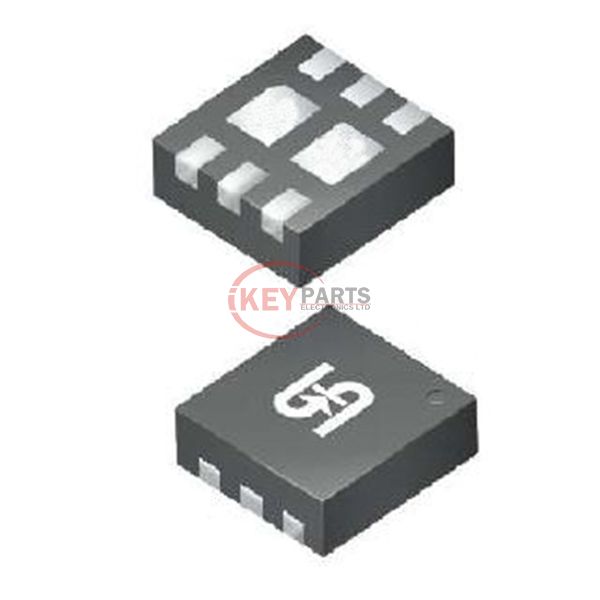

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM2537CQ RFG

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM2537CQ RFG
Description
MOSFET N/P-CH 20V 11.6A/9A 6TDFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM2537CQ RFG PDF
TSM2537CQ RFG Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN and P-Channel
FET FeatureLogic Level Gate, 1.8V Drive
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C11.6A (Tc), 9A (Tc)
Rds On (Max) @ Id, Vgs30mOhm @ 6.4A, 4.5V, 55mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs9.1nC @ 4.5V, 9.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds677pF @ 10V, 744pF @ 10V
Power - Max6.25W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-VDFN Exposed Pad
Supplier Device Package6-TDFN (2x2)
Request Quote Now
Request Quote Now

We can supply TSM2537CQ RFG, use the request quote form to request TSM2537CQ RFG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM2537CQ RFG. The price and lead time for TSM2537CQ RFG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM2537CQ RFG. We look forward to working with you to establish long-term relations of cooperation.
