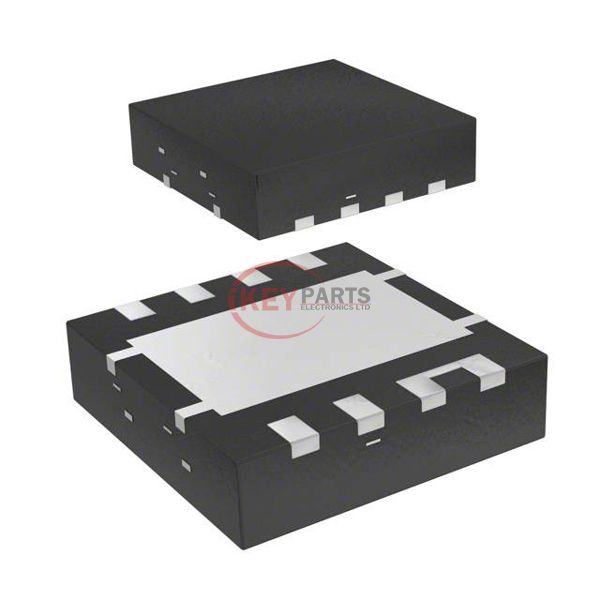

CSD86356Q5DT

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments CSD86356Q5DT

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD86356Q5DT
Description
SYNCHRONOUS BUCK NEXFET POWER BL
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD86356Q5DT PDF
CSD86356Q5DT Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureLogic Level Gate, 5V Drive
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C40A (Ta)
Rds On (Max) @ Id, Vgs4.5mOhm @ 20A, 5V, 0.8mOhm @ 20A, 5V
Vgs(th) (Max) @ Id1.85V @ 250µA, 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7.9nC @ 4.5V, 19.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1.04nF @ 12.5V, 2.51nF @ 12.5V
Power - Max12W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device Package8-VSON-CLIP (5x6)
Request Quote Now
Request Quote Now

We can supply CSD86356Q5DT, use the request quote form to request CSD86356Q5DT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD86356Q5DT. The price and lead time for CSD86356Q5DT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD86356Q5DT. We look forward to working with you to establish long-term relations of cooperation.
