BSG0811NDATMA1

Enlarger

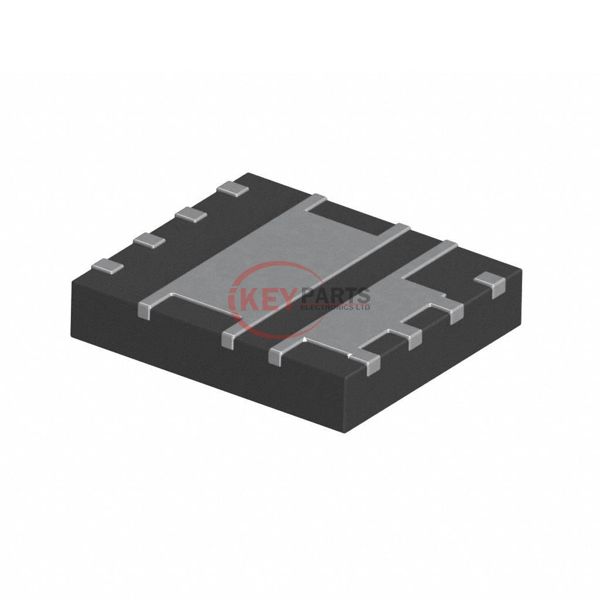

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BSG0811NDATMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BSG0811NDATMA1
Description
MOSFET 2N-CH 25V 19A/41A 8TISON
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSG0811NDATMA1 PDF
In Stock
7605
BSG0811NDATMA1 Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Dual) Asymmetrical
FET FeatureLogic Level Gate, 4.5V Drive
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C19A, 41A
Rds On (Max) @ Id, Vgs3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1100pF @ 12V
Power - Max2.5W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device PackagePG-TISON-8
Request Quote Now
Request Quote Now

We can supply BSG0811NDATMA1, use the request quote form to request BSG0811NDATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSG0811NDATMA1. The price and lead time for BSG0811NDATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSG0811NDATMA1. We look forward to working with you to establish long-term relations of cooperation.
